Description
DISPLAYS UP TO 5 GASES SIMULTANEOUSLY
LEL for CH4 and C3H8 (Methane & Propane) with %Volume and PPM Optional
Oxygen – O2
Carbon Monoxide – CO
Hydrogen Sulfide – H2S
Hydrogen Cyanide – HCN
SELECTABLE GAS TYPE
Methane (Natural Gas)
Propane
STANDARD FEATURES
Intrinsically Safe Design (Certified)
Exceptional Water/Dust Protection (IP64)
2-Speed Pump for Fast Sampling
Rubberized Housing for Durability
Audible Tick for Fast Leak Locating
Flashlight
Long Life “Smart” Sensors
Multi-Language Support
Multi-Color LED Dome Warning Light
Bluetooth

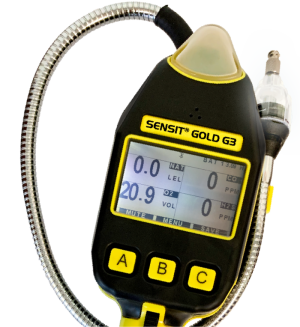

Bright, Easy to Read Display

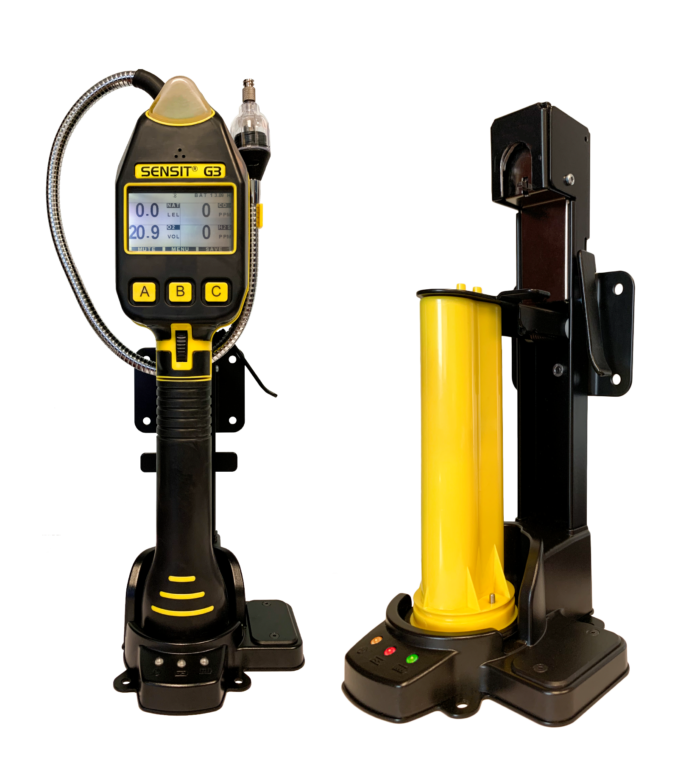

SMART-CAL 360 Compatible (Automatic Calibration/Bump Testing)
Loud, Audible Alarm
SMART-LINK 360 Compatible (Download Logs)
Battery Strength Indicator
SERVICE 360 Compatible (Firmware Updates)
Internal Memory for Record Retention
Rechargeable Battery
APPLICATIONS
Combustible Gas Leak Detection
Gas Leak Survey
Above and Below Ground Leak Pinpointing
Carbon Monoxide Investigations
Confined Space Monitoring
Combustible Gas Measurements
Pipeline Purging
Method 21 Emissions Testing
Inert Gas Operations
CERTIFICATIONS
UL
Specs
PRODUCT SPECIFICATION
| Size |
L-13 x W-3 x D-3.2 in (330 x 76 x 81 mm) |
| Weight |
2.3lbs (1.0kg) |
| Operating Temperature |
-4 to 122° F (-20 to 50° C) |
| Storage Temperature |
-4 to 140°F (-20 to 60° C) |
| Battery Life |
>20hrs Continuous with Rechargeable |
| Recharge Time |
10hrs Max |
| Recharge Temperature |
32°F to 104°F (0°C to 40°C) |
| Environmental Protection |
IP64 |
| Display |
2.7” TFT LCD |
| Standard Kit |
Soft-Sided, Padded Pouch
Vehicle/Desktop Charger
Wall Transformer or Vehicle Aux Cord
Rechargeable Battery
Extra Sensor Cap
Wrist Strap
Instruction Manual |
| Optional Accessories |
GPS with 3M Accuracy
Extension Adapter
Belt Clip
Carrying Strap (Additional Hardware Required) |
ADDITIONAL FEATURES
| Quick Menu |
Tick
Barhole
Purge Test
Leak Search
Peak Mode
Stand By
CF Test
CO Test
Confined Space Mode
Inert Mode |
| Barhole Test Features |
Peak Readings
Sustained Readings
30 Second Test Automatic Barhole Test Purge
Test Data Saved to Memory |
| Configurable Calibration Reminders |
Next Calibration Due
Last Calibration
Calibration Over-Due
Days Remaining Until Calibration Due
Calibration Required Lockout |
| Gas Specification |
“NSR” – Non-Standard Response
“NSC” – Non-Standard Combustible |
SENSOR SPECIFICATIONS
| TYPE |
TECHNOLOGY |
RESOLUTION |
RANGE |
ACCURACY |
| LEL |
Semiconductor |
Variable: 0.1% – 2.0% Increments |
0-100% LEL |
±10% or 1%LEL* |
| PPM* |
Semiconductor |
1 ppm or 10 ppm |
0 – 50,000 ppm |
±10% or 500ppm* |
| % NAT GAS |
Thermal Conductivity |
0.1% |
5 – 100% Methane |
±5% |
| Propane |
Thermal Conductivity |
0.1% |
2.2 – 100% Propane |
±5% |
| O2 |
Electrochemical |
0.1% |
0-25% |
±0.2% or 10%** |
| CO |
Electrochemical |
1PPM |
0-2,000PPM |
±5PPM or 5%** |
| H2S |
Electrochemical |
1ppm or 0.1ppm |
0-100PPM |
±2PPM or 5%** |
| HCN |
Electrochemical |
1ppm or 0.1ppm |
0-30PPM |
±1PPM or 5%** |
| SO2 |
Electrochemical |
0.1ppm |
0-20PPM |
±1PPM or 10%** |
*PPM Optional
**Whichever is greater
